Sulfuric acid tank semi-trailer

Product Model : CL9406GFW Corrosive Goods Tank Transport Semi trailer

Transport media : hydrochloric acid (hydrogen chloride), sodium hydroxide solution (liquid alkali), acetic acid (acetic acid, glacial acetic acid), sodium hypochlorite solution, hydrogen peroxide solution, sulfurous acid, phosphoric acid, formic acid, ammonia water, hydrogen chloride (industrial wastewater, hydrochloric acid, hypochlorous acid).

Tank size : 10500 × φ 2100mm

Announcement volume (m ³) : 29.5

Actual volume (m ³) : 33

Thickness (mm) : 5.2

Total weight (Kg) : 40000

Curb weight (Kg) : 8400

Rated load capacity : (Kg)31600

product-750-750

Tank body : The tank body is made of Q235 sheet metal according to GB18564.1 standard, with an effective volume of 29.5 cubic meters and a plastic lining thickness of 16mm. The Q235 carbon steel plate is used to make the tank body thickness of 4.2mm and the head thickness of 4.75mm. There are two sets of PE manhole tank covers or three sets of optional PE manhole tank covers with square protection boxes at the inlet, glass steel walkway in the middle, and safety protection on both sides. The bottom of the tank body is equipped with a stainless steel fluorine lined pneumatic subsea valve (with subsea valve sound control device). The rear end is equipped with DN80 steel lined plastic ball valves with outlets on both sides of the left and right automatic flow. The discharge port is equipped with a plastic protective box. Two side barrel tubes, two discharge tubes, two 8KG fire extinguishers, and a ladder behind the tank.

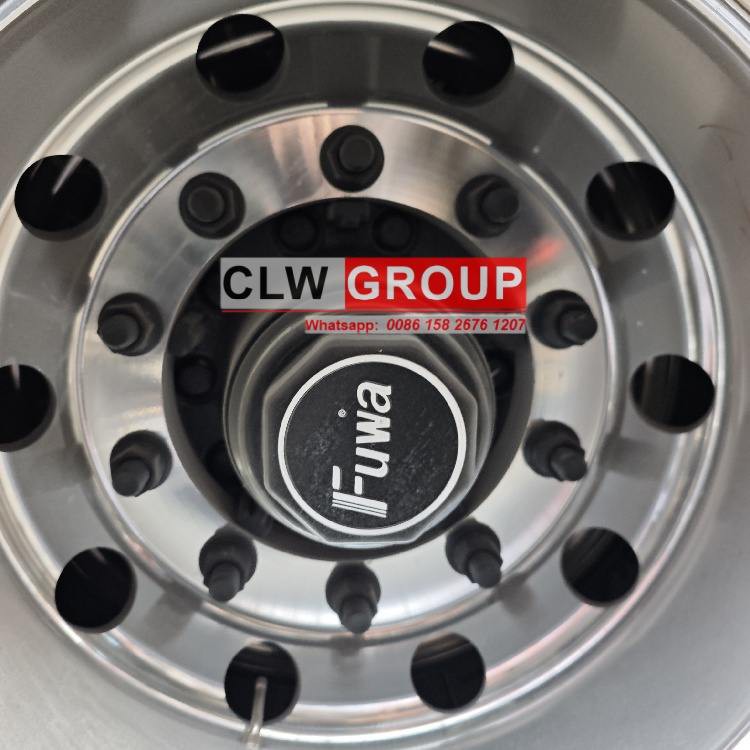

Underframe section : 3*10T Fuhua axles (disc brake with air suspension, two axles with EBS, equipped with brake lining alarm device, equipped with pneumatic pressure system air drying and oil-water separation device), equipped with 12 12R22.5 vacuum tires and iron steel rings, 28 ton linkage support legs, plastic mudguard, 50 # traction pin, 1 spare tire rack, 1 toolbox, and 3 safety signs installed.

Attachment section : (including left and right protection, rear bumper) all made of carbon steel material.

Paint appearance : Before painting the entire vehicle, shot blasting treatment is carried out to achieve the effects of dust removal, dirt removal, and rust removal, enhancing the multi-layer coverage and adhesion of the paint, corrosion resistance, and durability without delamination, ensuring bright and beautiful appearance colors. Paste "corrosion products"+"corrosion characters", reflective strips (fully pasted along the reflective tape) and reflective tape. Tank paint: National standard dark gray.

product-750-750

Advantage

Corrosion resistance : The vehicle tank is made of special materials, which have good corrosion resistance and ensure the safe transportation of corrosive materials.

Safety performance : Equipped with advanced safety systems, including emergency braking devices and spill prevention devices, to ensure maximum safety during transportation.

Efficient loading and unloading : The unique design makes the loading and unloading process more efficient, improving transportation efficiency.
