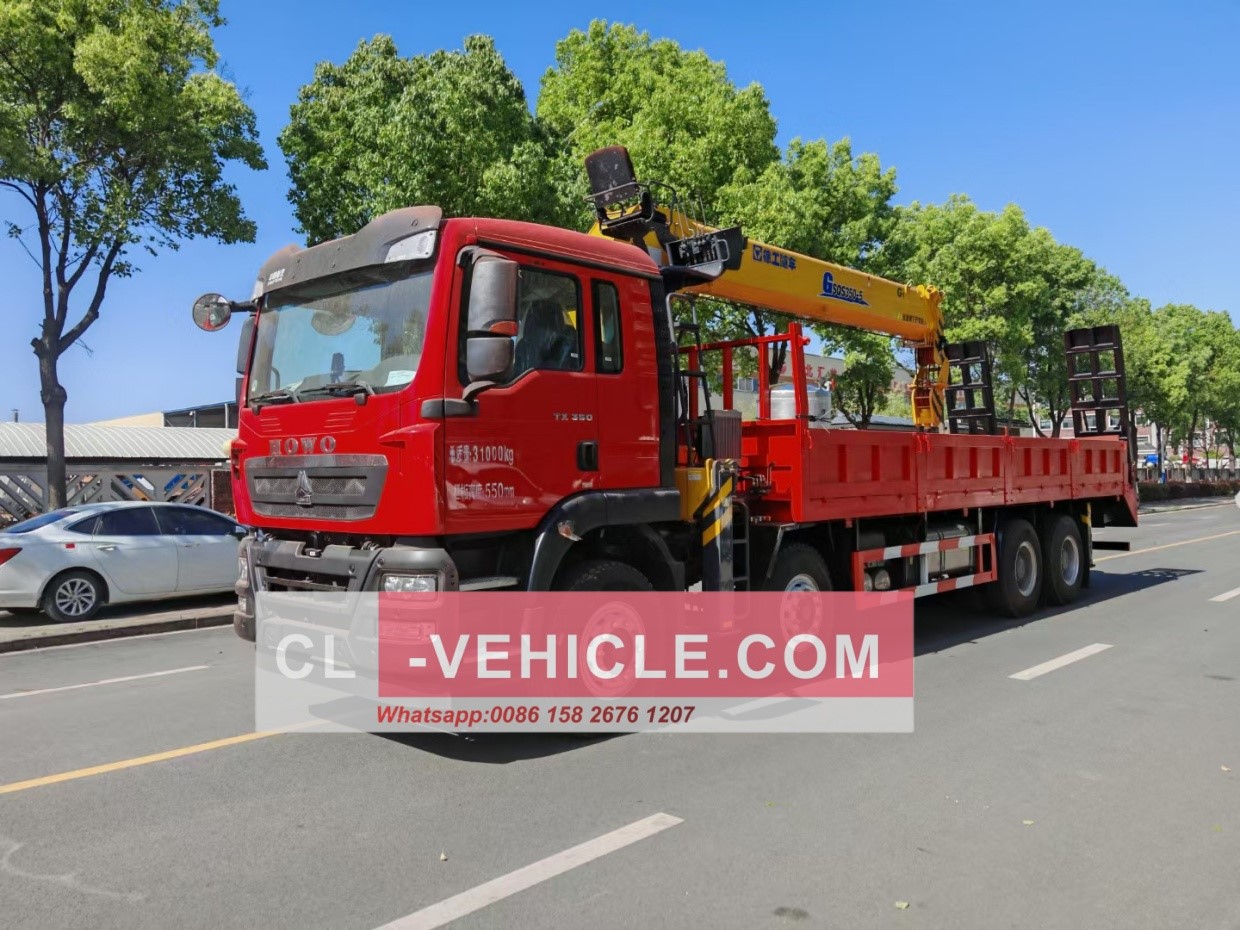

HOWO Truck Mounted Crane With Ramp

SINOTRUK HOWO 8X4 TRUCK MOUNTED CRANE WITH LADDER

Cabin: HOWO TX-F, one sleeper, with air conditioner

Engine:WD615.47, 371hp, Euro 2, displacement 9.726L

Gearbox: HW19710, manual, 10 F & 2 R

Front axle: 9500kg, Drum brake

Rear axle: 16000kg, Drum brake Speed ratio 4.803

Steering gear: Bosch

Front and rear reinforced multi leaf springs (11/11/12)

Tires: 12.00R20, 12+1 pcs (including one spare tire)

Fuel tank: 400L



Cargo body: inner size 7600X2450X500mm,

Overall dimension: 11500*2550*3880mm

with rample on the rear of the cargo box



Crane

20t 5-section boom, with double axle hydraulic rear outriggers

Lifting height: 20.5M, working radius: 18.5M





configuration	CLW 20 ton 5 section boom, dual pump double pump convergence, upper operation, one button start and stop, automatic constant temperature radiator
Working radius (m)	18.5
Outrigger span (m)	The compound front leg of the two sections is 7.2 meters long
Rear Outrigger	Single chamber hydraulic rear leg
