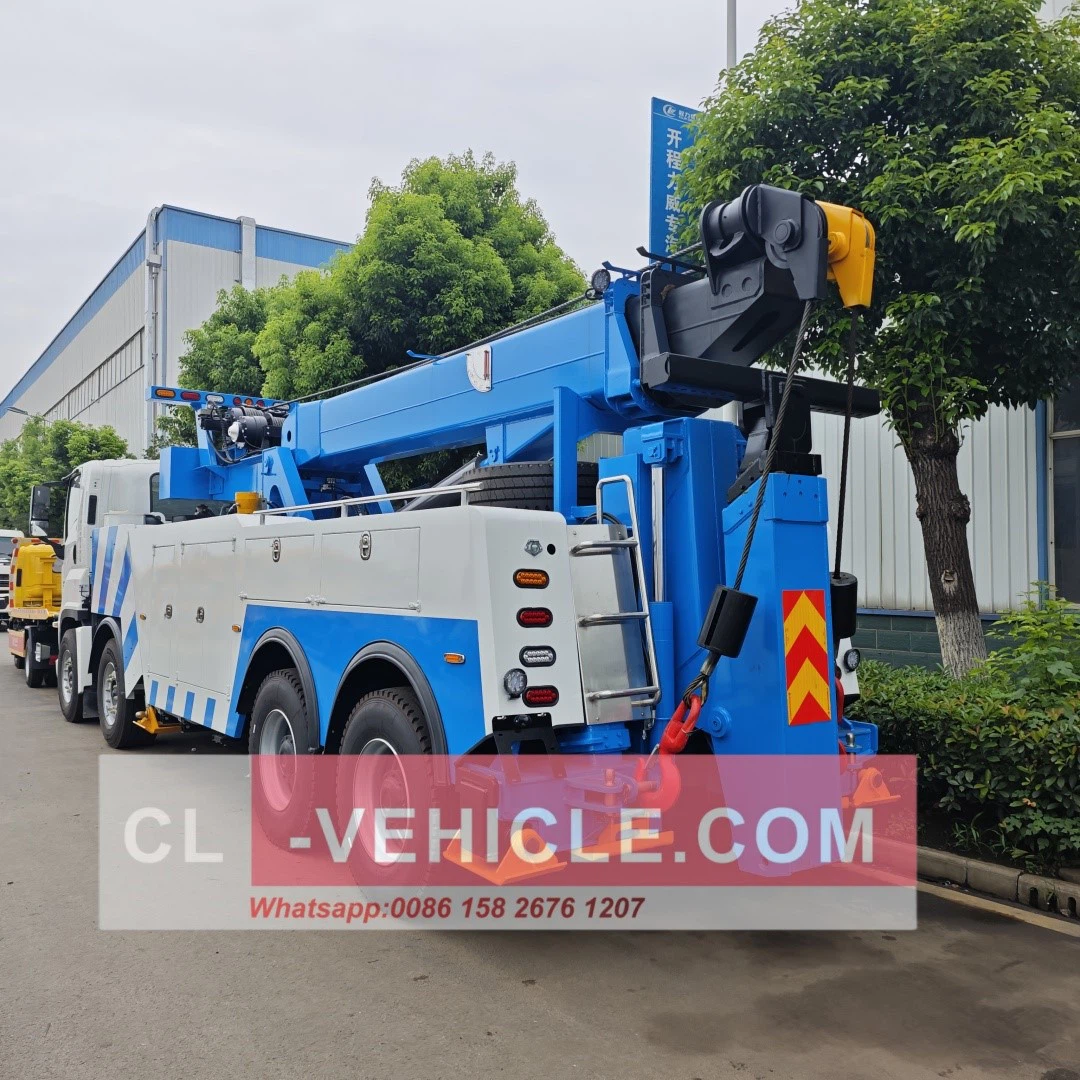

ISUZU GIGA ROTARY TOW TRUCK
With its outstanding performance and sophisticated configuration, it has become a leader in the industry. The car adopts the Isuzu Giant Coffee 5X series cab, providing a spacious and comfortable driving environment. The power system is equipped with the Isuzu 6WG1-TCG62 high-performance engine, which has strong power output with a maximum horsepower of 520HP and a displacement of 15.68L, ensuring stable operation of the vehicle under various working conditions. The transmission system is matched with a Fast 12JSD240TA-B gearbox, which shifts smoothly and has high transmission efficiency, further improving the vehicle's handling and fuel economy. You can also choose Allison automatic (AT) transmission to make your rescue work easier and more effortless.
CAB & CHASSIS
• ISUZU GIGA 5X Cab
• Beast Engine: ISUZU 6WG1-TCG62 (520HP | 15.68L Displacement)
• Transmission: FAST GEAR 12JSD240TA-B (Allison AT transmission optional)
• Tires: Front 385/65R22.5 | Rear 315/80R22.5
BODY FEATURES
360° Continuous Rotation
3-Section Boom: Max Lifting Capacity 50 Tons!
12m Max Height | 10 Tons at Full Extension
11m Telescopic Recovery Arm
Split Body Design + Bilateral Synchronized Controls
Long-Distance Remote Operation
RESCUE KIT INCLUDED
• 2x 200kN Hydraulic Winches (45m Steel Rope)
• U-shaped Tire Cradle ×1
• Wheel Forks ×4 Pairs
• Steel Plate Lifting Ear ×1 Pair
• Towing Skid ×1 Pair
• Auxiliary Brake Line Kit
• LED Rear Work Lights ×3 | Warning Indicators ×3
Boom Rating:
50000 kgs(110000lbs)
Winch(First Layer):
25,000 kgs(55000 lbs)x2winches
Cable:45m(147)
Wheel Lift Extended Rating:
13,000 kgs(28660 lbs)
Tow Rating:
50,000 kgs(110,000 lbs)
Product detail
FAQ
Looking for a dependable manufacturer of rotator towing truck ? To assist you in making an easy choice, we've addressed some commonly asked queries below:
Q: What makes the ISUZU-GIGA Rotary Tow Truck suitable for heavy-duty recovery operations?
A: The ISUZU-GIGA Rotary Tow Truck is engineered for extreme recovery scenarios, featuring a high-capacity rotator crane (typically 30-50+ ton/meter lifting torque) that can swivel 360° and articulate for complex angles. Built on ISUZU's robust GIGA chassis with reinforced suspension and a powerful diesel engine (e.g., 6-cylinder turbo), it combines exceptional stability, off-road traction, and hydraulic power to recover overturned trucks, buses, or construction machinery in confined spaces or rugged terrain. Its integrated winch/boom system and outriggers ensure maximum control during heavy lifts.
Hot Tags: rotator wrecker truck for isuzu giga, China rotator wrecker truck for isuzu giga manufacturer, suppliers, factory, 50ton rotator tow truck, Rotator Tow Truck, Rotator Wrecker Truck For Iveco
