Isuzu GIGA Sewer Pipeline Dredging Truck















 ●Engine：The main engine is the Isuzu 4HK1-TCG60 engine,As the heart of this cleaning and suction vehicle, the Isuzu 4HK1-TCG60 engine has won widespread praise in the industry for its outstanding performance. The engine adopts the National VI emission standard, which not only responds to the global call for energy conservation and emission reduction, but also demonstrates excellent fuel economy and power output in practical use. The powerful 205 hp ensures that the vehicle can maintain a stable driving speed and strong climbing ability in various road conditions, whether it is shuttling through bustling cities or galloping on rugged mountain roads, it can handle it with ease.





●Transmission：Paired with an Isuzu MLD six speed gearbox, it shifts smoothly and is easy to operate, effectively improving the vehicle's fuel economy and driving efficiency





●Tire：Equipped with 295/80R22.5 16PR vacuum tires, it has high load-bearing capacity, good wear resistance, and can adapt to different road conditions, ensuring the stability and safety of vehicle driving





Other features： air conditioning, directional assistance, central locking with remote key, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, equipped with ABS, air brake, front axle 6.3 tons, rear axle 13 tons, making vehicle handling easier and more convenient, and braking performance more reliable



Super structure configuration



●Tank body：The tank body is customized with high-quality 8mm thick carbon steel from Wugang brand, with an effective volume of 13 cubic meters. The clean water tank and sewage tank can be freely distributed, and the tank head is formed by one-time die-casting, with high strength and good sealing.

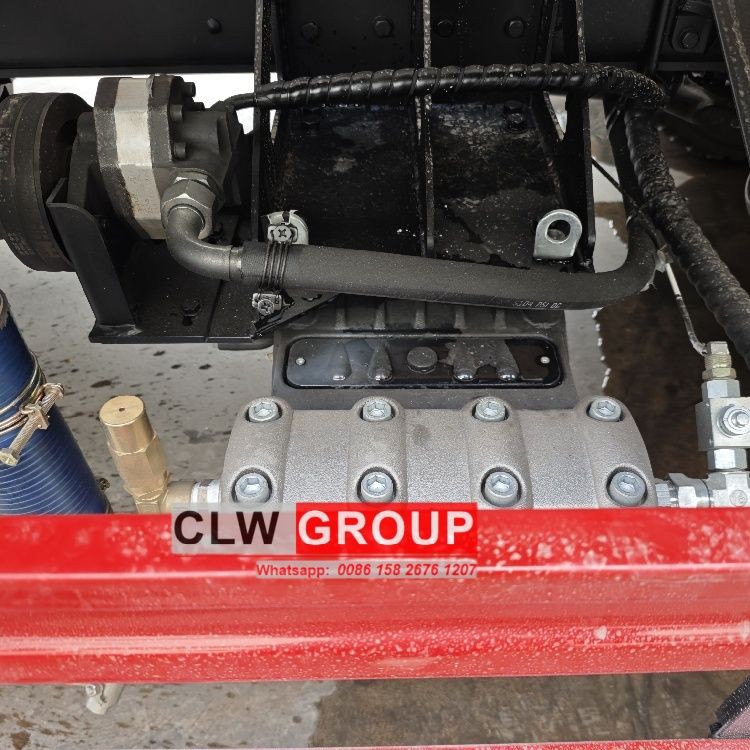

●High pressure cleaning system：The cleaning part adopts a 300 flow high-pressure pump, equipped with imported mushroom shaped nozzles, triangular nozzles, and elliptical nozzles with high penetration performance, which can clean and drain pipes with a diameter of 100mm to 800mm, and save more than 1/3 of water compared to similar traditional products

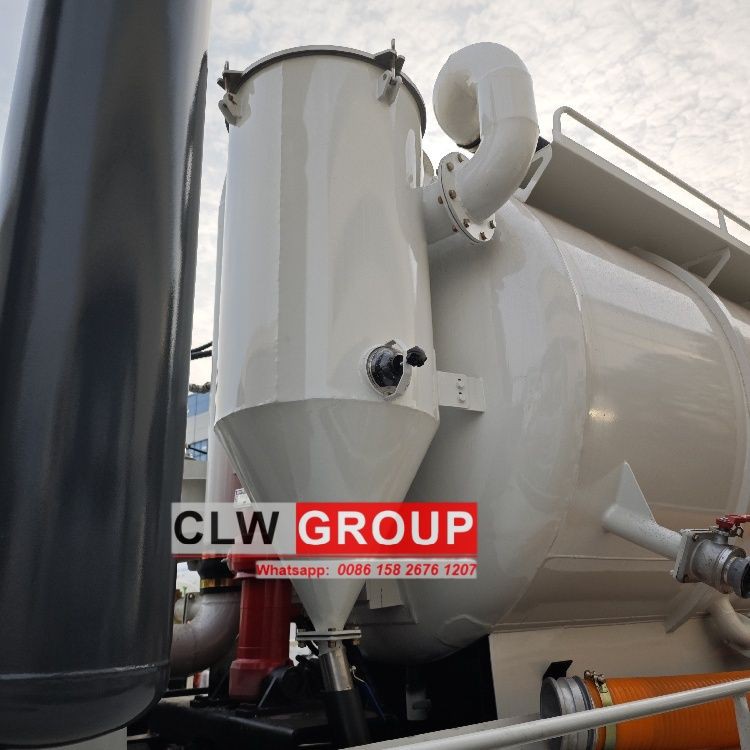

● Suction system: The suction part adopts the Italian Roots pump (Haipeng) HIBON VTB 820, with a pumping rate of 47 m³/m and super strong suction power. It is equipped with a secondary anti overflow system to truly achieve full tank capacity, unaffected by high-altitude areas, oil fields, and tunnels. It is equipped with a sight window, an 8-meter suction pipe, etc. The dirt inside the tank can be directly dumped through the back cover, and has the characteristics of high vacuum degree, large tonnage, high efficiency, and wide application

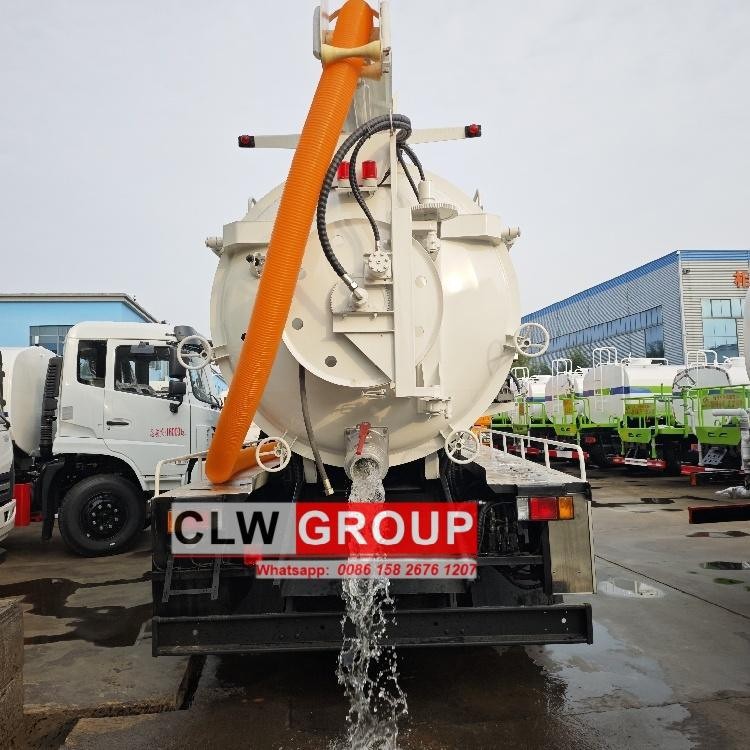

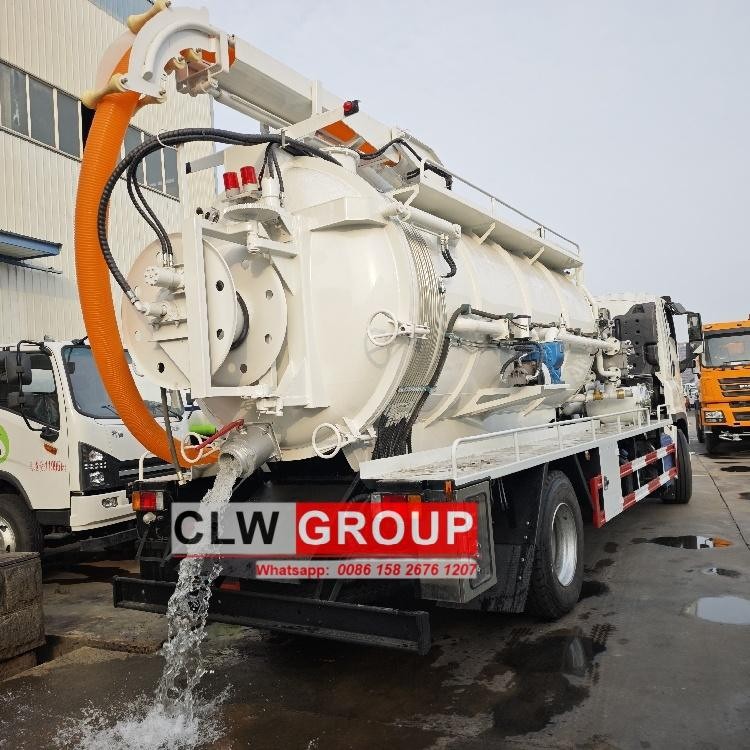

●Hydraulic system：The tank body is equipped with hydraulic lifting, and the back cover is hydraulically opened, making it easy to dump various pollutants and sludge clean. The operation is convenient and fast, improving work efficiency

Isuzu giga cleaning and suction truck is a powerful environmental sanitation tool that combines efficient cleaning and strong suction functions.



The vehicle has a large tank capacity and is made of high-quality carbon steel material, which is sturdy and durable, effectively ensuring the service life and load-bearing capacity of the vehicle. The cleaning system is equipped with a large flow high-pressure pump and various specialized nozzles, which can generate powerful high-pressure water flow, quickly clear and clean various blocked pipelines, and have significant water-saving effects, improving the continuous operation ability. The suction system adopts a high-power vacuum pump with high suction power and long suction range, which can quickly suction various sewage, sludge and other pollutants, effectively preventing tank overflow and extending the service life of the vacuum pump



In addition, the vehicle also has the advantages of easy operation, convenient maintenance, and high safety performance. It is widely used in municipal sanitation, chemical industry, industrial and mining enterprises, property communities, and other fields. It is a powerful assistant for your cleaning work and contributes to creating a clean and beautiful urban environment







Advantages :



1. Convenient operation of the host driver. Simple structure, stable quality, and low maintenance cost.



2. Large flow high-pressure pumps have a wider range of pipeline dredging.



3. The brand new Roots vacuum pump (with no geographical restrictions and operates without oil or water) is maintenance free.



4. Sustainable operation of high-temperature resistant molecular materials.
