Dongfeng Grain Delivery Truck

Dongfeng Grain delivery truck has the characteristics of simple structure, reliable performance, large conveying capacity, convenient operation, strong mobility, and no pollution to materials. It is widely used in the transportation of feed for large, medium and small breeding enterprises. The feed tank of the bulk feed truck is erected on the chassis of the truck, and the special facilities are composed of tank assembly, conveying system, bulk feed truck tank hydraulic system , the electric system of the bulk feed tank, and the pneumatic distribution system. Warehouse organization and so on.



vehicle size:12000*2500*3995mm

Wheelbase:1950+4250+1300mm

volume:42000L





Apartment	8	Tank size(mm)	9000×2480×2550
Discharge rate(kg/min)	500-600	Swivel Angle of movable discharging crane(m)	±180 °
Maximum distance of horizontal conveying(m)	7	Maximum elevation Angle of movable discharging crane	60 °
Tank volume	42m³	Swivel Angle of movable discharging crane(m)	8.5
Packing auger diameter(mm)	273	Loading tons	20 tons
Discharge time(min)	35	Residual rate (%)	0.01
Discharge principle	Hydraulic twist,blade rotation	Packing auger material	Alloy steel
Discharge system(blade rotate)	Horizontal twisted dragon (horizontal tank bottom feeding 273mm), vertical twisted dragon (feeding 273mm), movable twisted dragon (top discharging 219mm)
Control system
Electric control system	3 pcs 5.5KW imported Siemens three-phase asynchronous motors, electrical control system, with 30 meters external power line, with remote control, advantages of low vibration, low noise. Waterproof and dust proof.
Hydraulic control system	Imported accessories: Denison hydraulic pump, Eaton hydraulic motor, hydraulic valve: Taiwan oil force, with radiator, with remote control.





1. The bulk feed transport truck boasts an incredibly lightweight design, featuring characteristics such as high strength, low center of gravity, superior handling, and increased loading capacity. The tank body is constructed using top-quality, high-strength steel plates and comes equipped with either hydraulic or electric unloading systems. This vehicle is a popular choice for transporting bulk feed products or raw grain from feed factories to livestock farms, poultry farms, and other feed processing facilities.



2. Dongfeng bulk feed transport truck transporting feed in bulk saves labor and costs less than packaging it in bags. Bulk feed is transported in a sealed tank to reduce losses, ensure quality and avoid pollution



3. Grain delivery truck fully automatic loading and unloading, continuous operation, greatly improving production efficiency.



4. Separate compartment can be installed in the bulk feed transport truck tank, which can transport many different kinds of feed or expansion medium at the same time.



5. The working mode can choose electric drive and hydraulic drive

Electric drive external use 380v power supply, low cost external power supply, environmental protection, The vehicle loss is small, but the unloading site must have a convenient external power supply

Hydraulic drive uses vehicles to unload at idle speed, fast speed, high safety, free of charge maintenance, unloading in places without external power supply.









Grain delivery truck tank is made of carbon steel plate, one-time forming technology, high strength, beautiful appearance; the top adopts inclined roof, which improves capacity and balance, and strict welding process ensures quality. Mechanical design, scientific proportioning, and international I-beam diagonal braces are used on the side of the box. Reinforced, more stable during driving, effectively eliminating the cracking of the connection between the box body and the chassis that occurs when the vehicle is used for a long time with full load in the traditional situation.

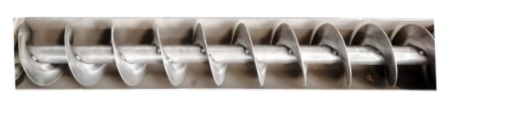

Auger of the Grain delivery truck



The spiral blade adopts traditional rolling technology, new single-pitch forming technology, cold winding forming technology, hot winding forming technology,

Meet the high standard needs of China's conveying machinery, harvesting plant protection machinery, Jinzhu mining machinery, environmental protection food machinery and other industries

Some models can choose to lengthen the auger



Equipped with three 5.5kw motors, a full set of Delixi brand electrical control system; electric control interlock protection such as phase loss, undervoltage, overvoltage, overload, anti-reverse, etc.Motor with high efficiency level reduces energy consumption, which directly saves cost for usersm,High protection level (IP55) ensures safe use

Reliable operation, convenient maintenance, strong interchangeability and versatility

Equipped with an independent axial fan to ensure that the motor operates at different speeds .have a good cooling effect

Constant torque at a certain speed

5-100HZ can operate Class F insulation.



Hydraulic drive adopts imported hydraulic accessories (hydraulic pump: American Denison Hydraulic motor: American Eaton, hydraulic valve: Taiwan oil force), there will be no slowdown or blockage of unloading speed caused by excessive hydraulic oil temperature, and the service life is at least 6 years





Looking for a dependable supplier for bulk feed tank truck? Look no further! To assist you in making an informed decision, we have compiled a list of frequently asked questions:



Q1: What types of bulk feed trucks are available?

A1: There are several types of bulk feed trucks available, including straight trucks, semi-trailers, and combination trucks. Straight trucks are smaller and more maneuverable, making them ideal for delivery to farms and ranches. Semi-trailers are larger and can carry more feed, but require a tractor unit to tow them. Combination trucks are a hybrid of the two, with a detachable trailer that can be used for longer hauls.



Q2: How do I choose the right bulk feed truck for my needs?

A2: Choosing the right bulk feed truck depends on several factors, including the size of your operation, the amount of feed you need to transport, and the distance you need to travel. It's important to work with a reputable dealer or manufacturer who can help you evaluate your specific needs and recommend the best type of truck for your situation.



Q3: Can I customize my bulk feed truck?

A3: Yes, many manufacturers offer customization options for bulk feed trucks to meet the specific needs of their customers. This can include modifications to the size and shape of the storage container, the type of dispensing system, and the overall design of the truck.



Q4: How long does it take to receive a bulk feed truck after ordering?

A4: The delivery time for a bulk feed truck can vary depending on several factors, including the availability of the desired model, any customization options, and the location of the manufacturer or dealer. It's important to work with the dealer or manufacturer to get an estimated delivery time and plan accordingly.
