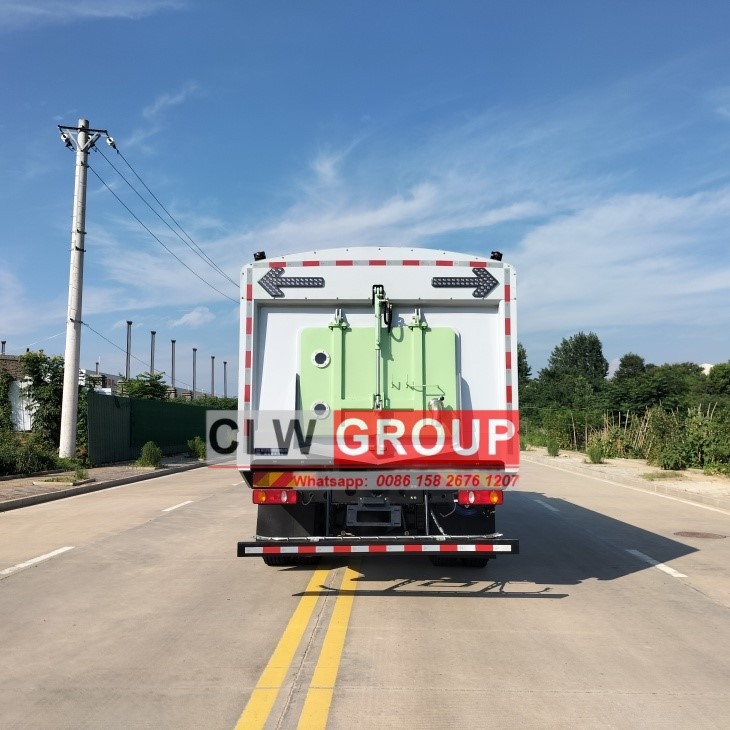

Dongfeng Tianjin 18 Ton Pure Electric Washing And Sweeping Vehicle

CLW dongfeng kinrun electric cleaning truck is suitable for mechanized cleaning, sweeping, spray dust reduction and other cleaning operations of urban roads, squares, docks, tunnels, bridges, curbs and curb facades.
It has the characteristics of zero emissions, no pollution, long continuous operation time, easy and comfortable operation, low noise, low power consumption, and good cleaning effect.
Compared to traditional fuel powered sweepers, electric sweepers have lower operating costs.

Dongfeng Tianjin 18 ton pure electric washing and sweeping vehicle

-Electric drive bridge (electricity 237kwh)

Vehicle model: CL5189TXSBEV

Chassis model: DFH1180EEV10

Vehicle wheelbase: 5300mm

Total weight: 18000KG

Curb weight: 13200,13500KG

Tire specification: 295/80R22.5 18PR

Upper capacity: 16 cubic meters (8 water/8 dust)

Dimensions: 9000x2530,2500x3500,3450,3400,3350

Battery type: Lithium iron phosphate battery

Battery brand: Ruipu Battery

Battery capacity: 237KWH

Charging time (recommended 180A DC charging at power): approximately 2.5 hours

Rated power of upper motor: 80KW

Load consumption per hour: 40-50KWH

Suggested charging station power: 120KW

Maximum power of chassis motor: 160KW

Maximum speed: 89

Steel plate: 10/10+8, D560 cab

Rated power: 90KW,

Peak power: 160KW, permanent magnet synchronous motor,TZ230XS050DN01,

Front axle: DF601S 6-ton front axle

Rear axle: electric drive axle 11t single reduction

Transmission: EP28D,

Controller cooling method: air cooling.

Other configurations: Powered by chassis battery, driven by permanent magnet synchronous motor, capable of real-time speed regulation according to needs, power take-off operation is not related to chassis driving system, providing excellent driving experience. Equipped with a central 2-sweep disc, Sanyo motor, GTM high-pressure water pump, Wanye gear pump, Hepres hydraulic cylinder, universal high-pressure roadside cleaning, maintenance free centrifugal fan, stainless steel water tank garbage bin, stainless steel high-pressure pipeline, Schneider control switch, American sensor, tail LED arrow light, garbage bin and water tank with anti overflow or low water level alarm device, indoor monitoring system for reversing and cleaning status, tail electric control operating system, 15m high-pressure flushing reel with a maximum cleaning width of 3.5m, high-pressure flushing 21m, electrical system with dedicated working device for chassis circuit. Composition of operation control circuit.
